Cuadro

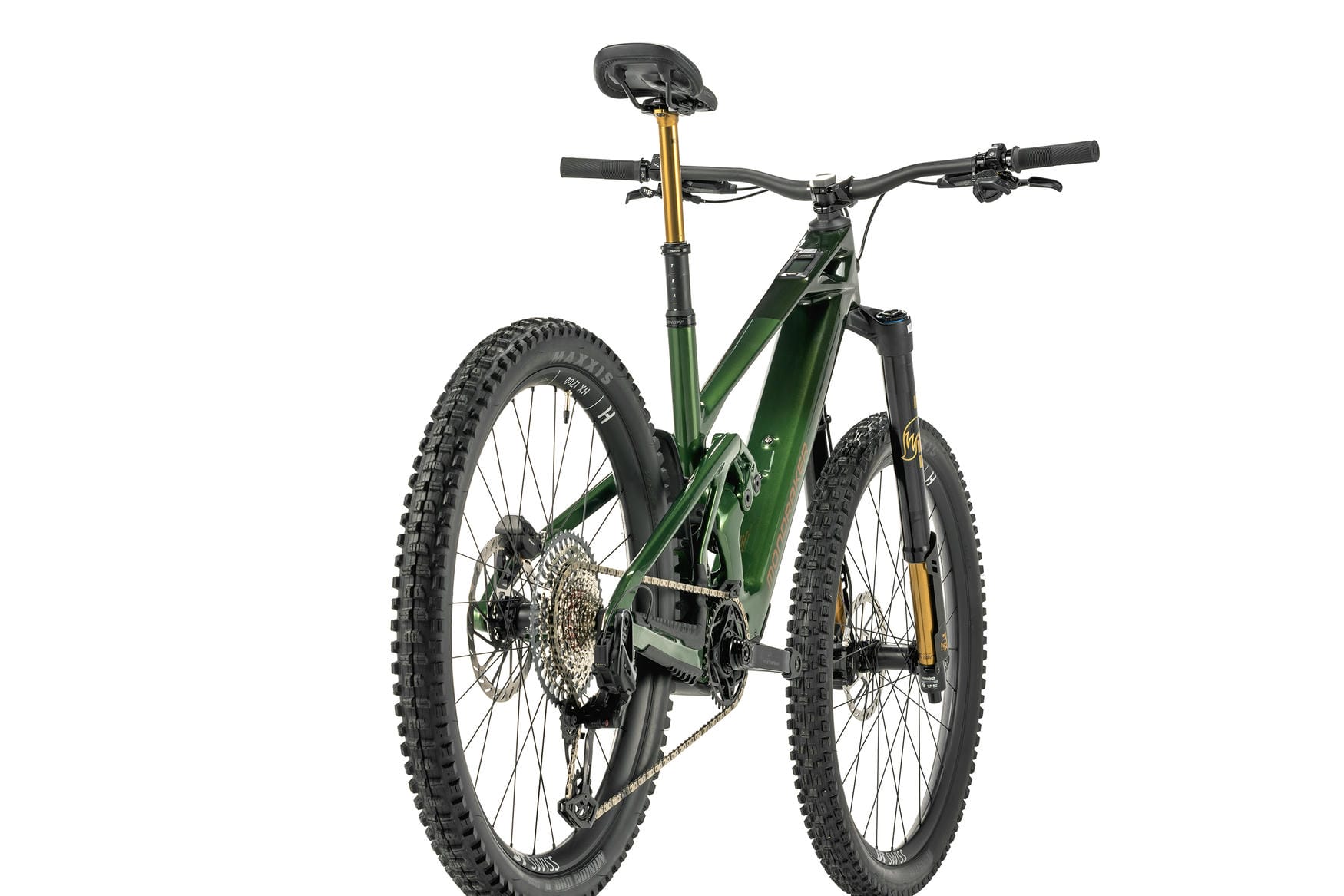

Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Tallas

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

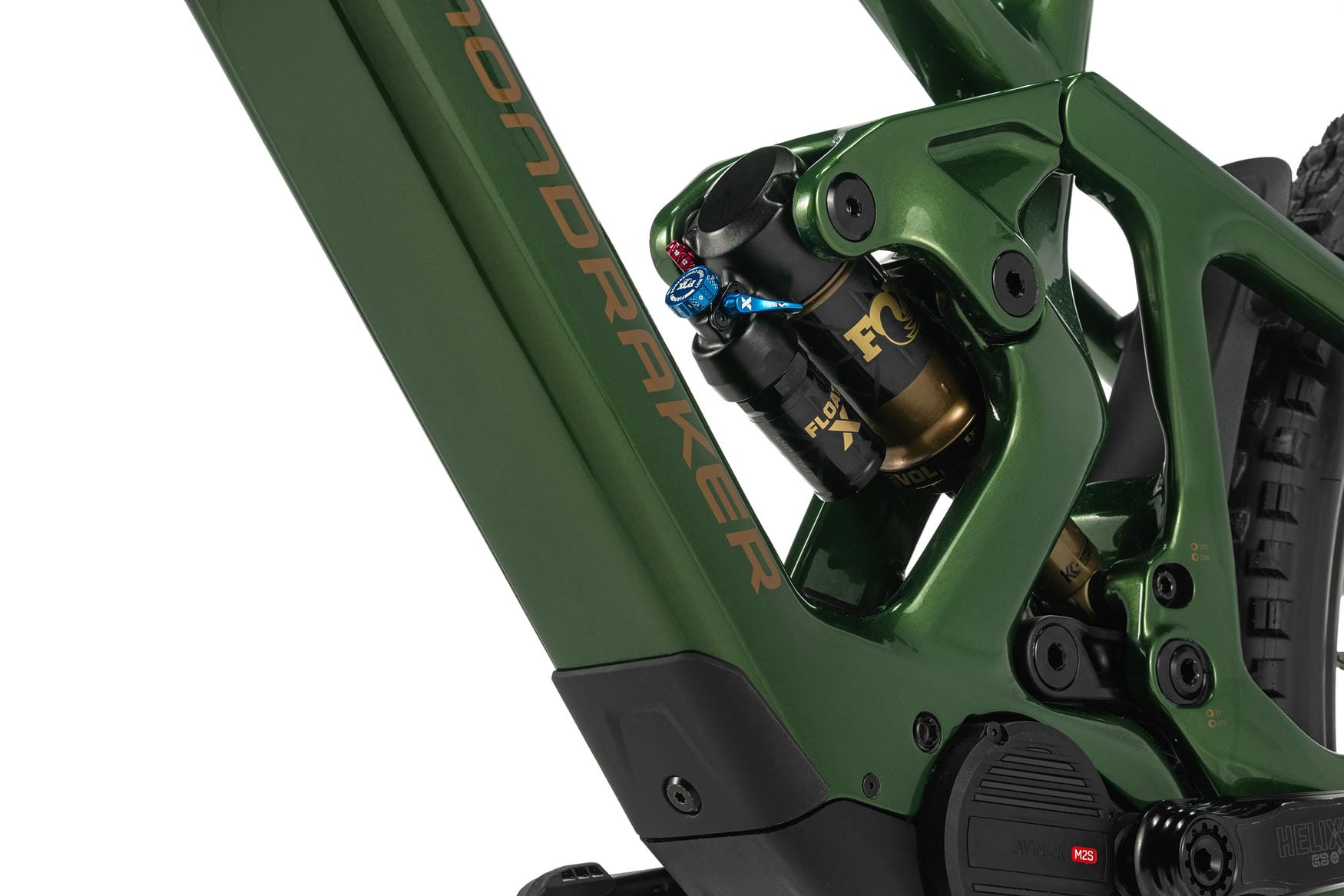

Amortiguador

Fox Float X Factory Kashima Evol LV 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.

Ajuste del amortiguador

CS 30 compression, 1,1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers

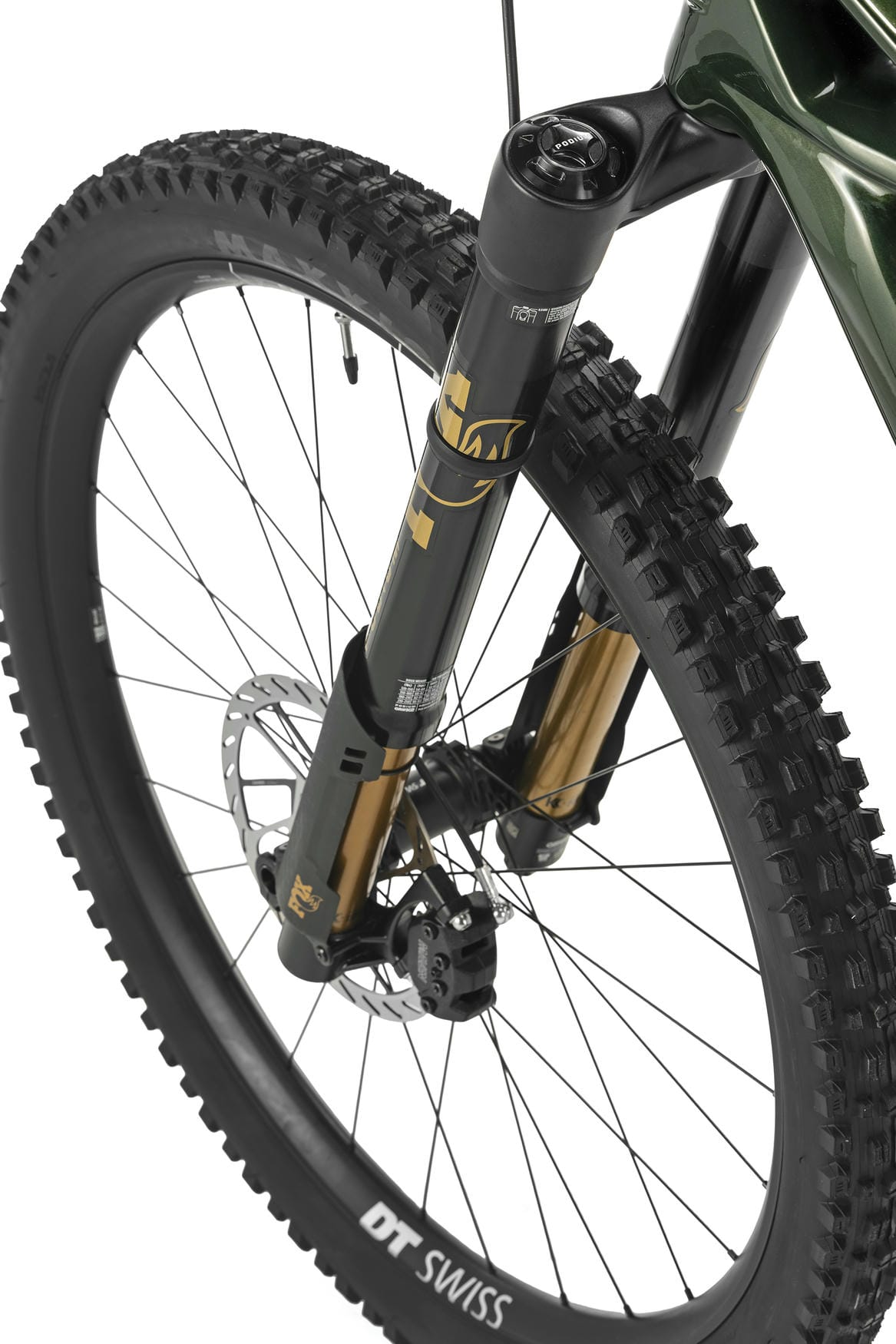

Horquilla

Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm thru axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.

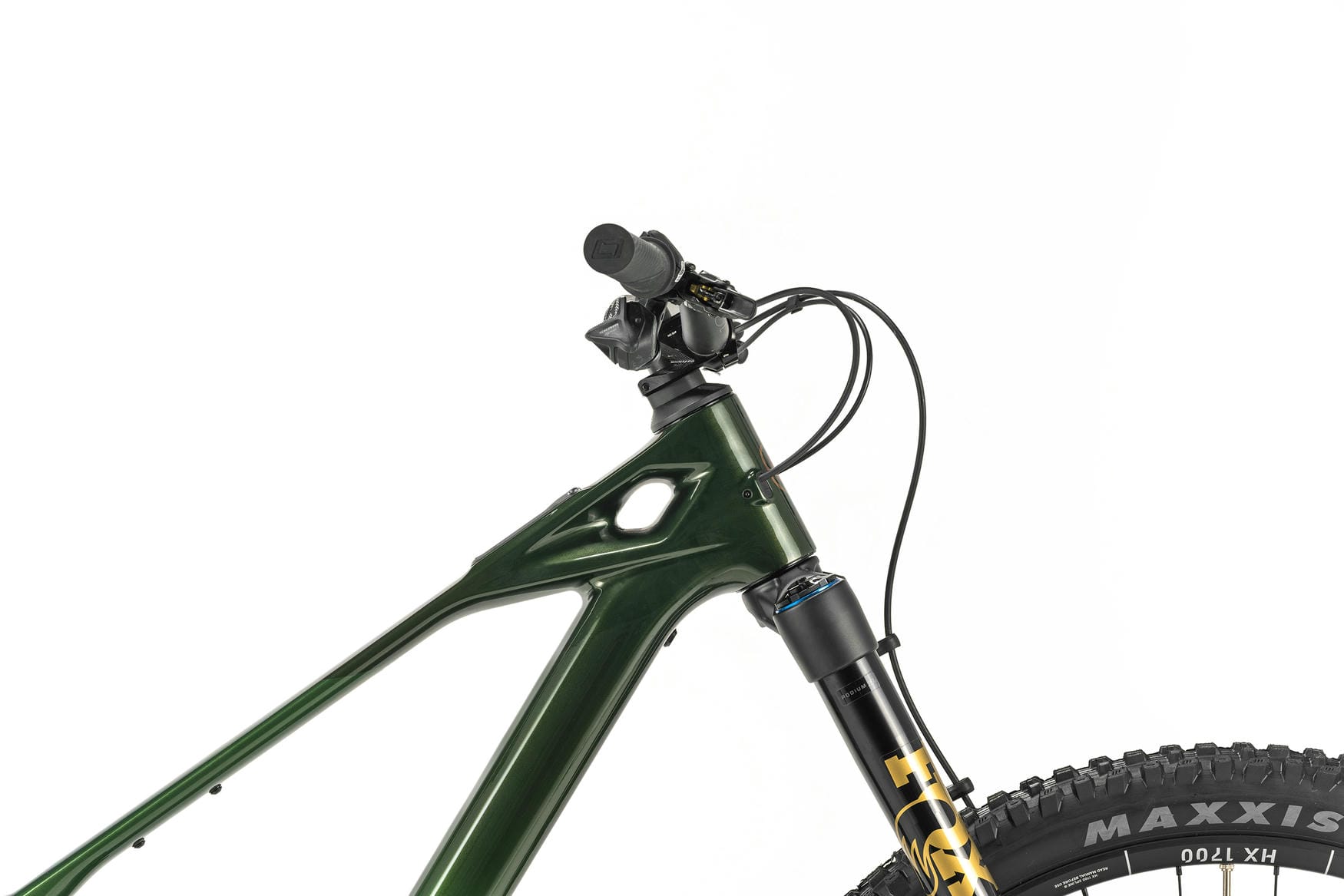

Dirección

Acros custom ZS56/ZS56, 1-1/8″, 1.5″ head tube, Internal cable routing, sealing plugs, without blocklock.

Potencia

Onoff S9 30mm 0º, Full CNC, 31.8mm barbore.

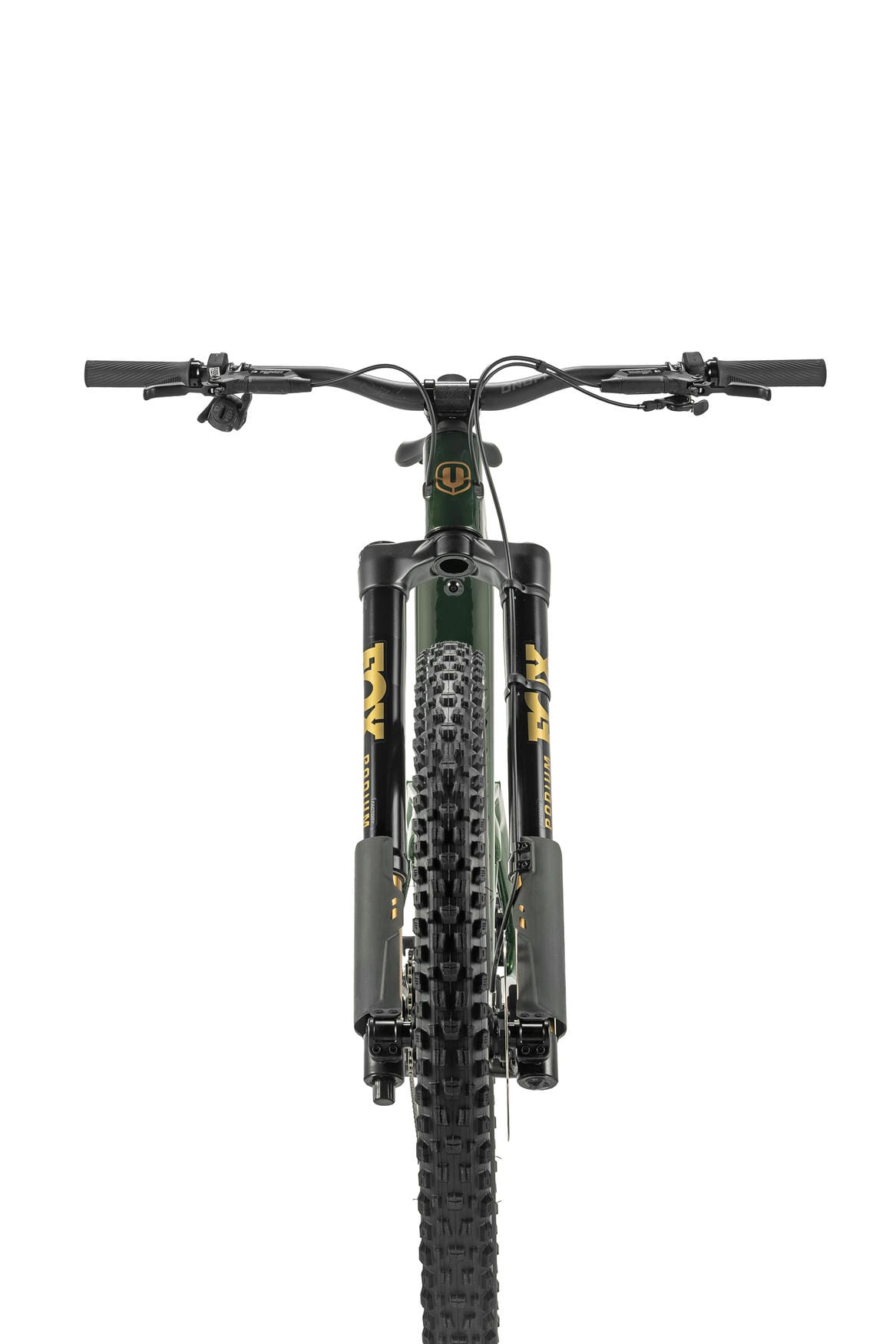

Manillar

Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

Puños

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size.

Tija

Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size: 155mm -180mm, L size: 185mm -210mm, XL size: 185mm -210mm

Sillin

Ergon SM10 E-Mountain Black.

Freno delantero

Sram Maven Silver, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Freno trasero

Sram Maven Silver, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Manetas de freno

Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust

Llantas

DT Swiss Hybrid HX 1700 Spline, 30mm internal width, welded aluminum, tubeless ready, 28 spokes

Radios

DT Swiss Straightpull spokes, DT Hybrid III, black

Buje delantero

DT Swiss 350, Boost 20x110mm, IS 6 bolts

Buje trasero

DT Swiss 350 Classic with 24T Ratchet System, Boost 12x148mm, IS 6 bolts, XD freehub

Neumático delantero

Maxxis Assegai 29×2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead

Neumático trasero

Maxxis Minion DHR II 27.5×2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead

Bielas

e*thirteen Helix Race e*spec alloy. All sizes: 155mm

Platos

Sram Eagle 36T T-Type, 104BCD, steel, CL55

Cadena

Sram GX Eagle T-Type, 12s Flattop, w/Powerlock

Cambio – trasero

Sram X0 Eagle AXS T-Type, 12s

Mandos – pulsadores de cambio

Sram Eagle AXS Pod Controller Rocker Paddle w/discrete clamp, 12s

Piñones

Sram XS 1275, 10-52T, T-Type, 12s

Otros

Sram AXS Extension Cord / Avinox 4A Charger

Peso sin pedales

22.9 Kg

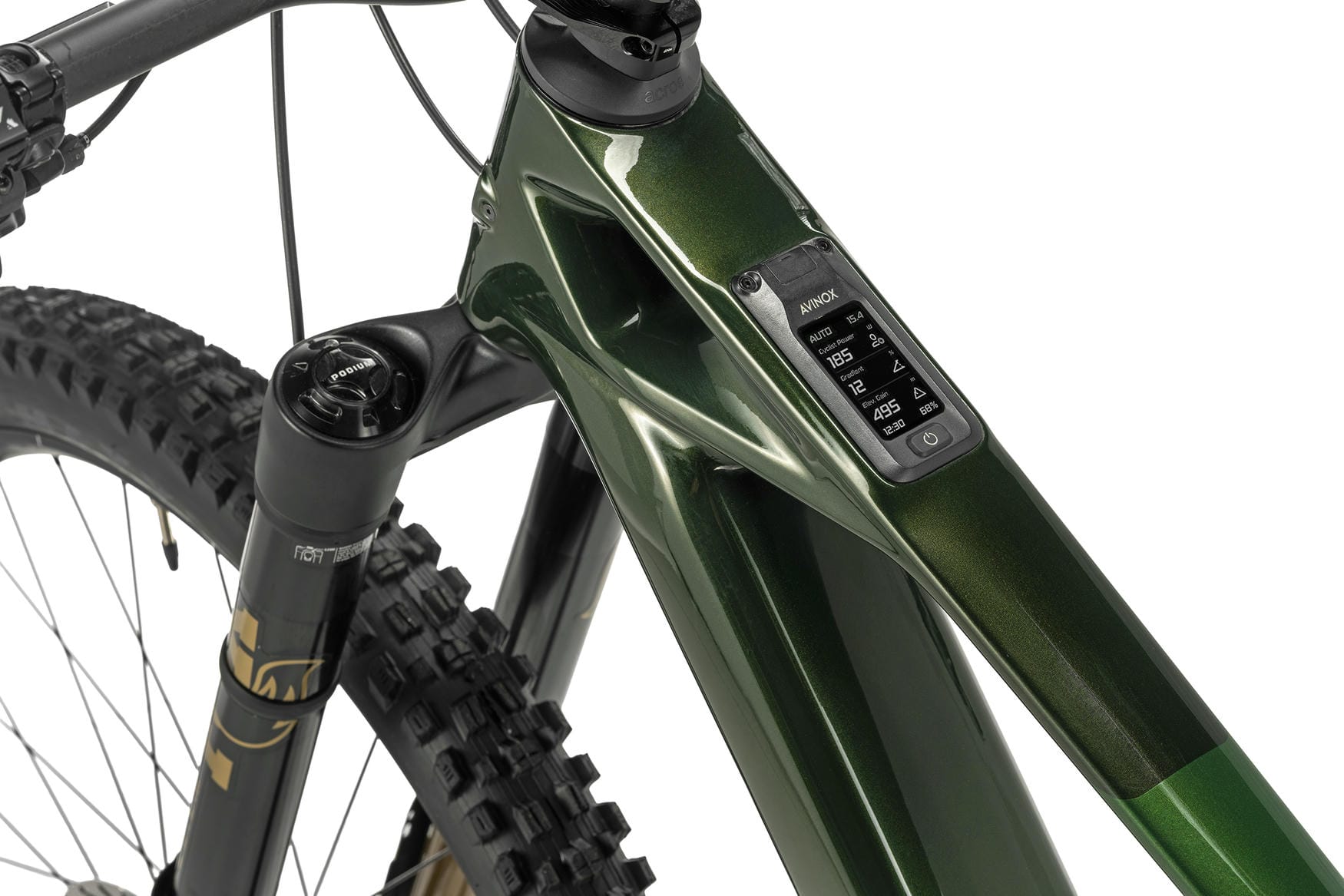

Display

Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)

Motor

Avinox M2S

Bateria

Avinox 800Wh Battery
